Two ground tuning units for portable antennas

A ground tuning unit is sometimes useful for vertical antennas.

Especially those over or near salt water.

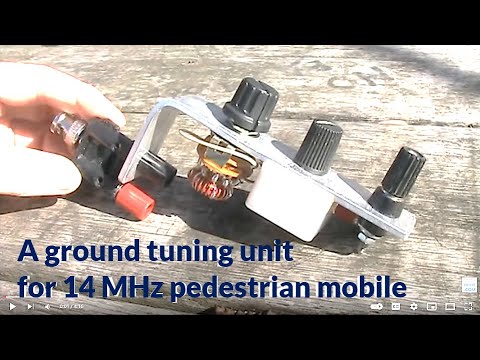

The first one was when I was trying pedestrian mobile antennas for walking along the beach. It worked but changing ground conditions meant its settings varied when I walked over different patches. I eventually reconfigured it to an L-match antenna coupler that became the basis for the Wadetenna I've used for hundreds of pedestrian mobile contacts.

This is a beefier version that could handle more power. It's a much more recent project. It's just the thing if you want to set up antennas for operating from piers.
